K60 Series

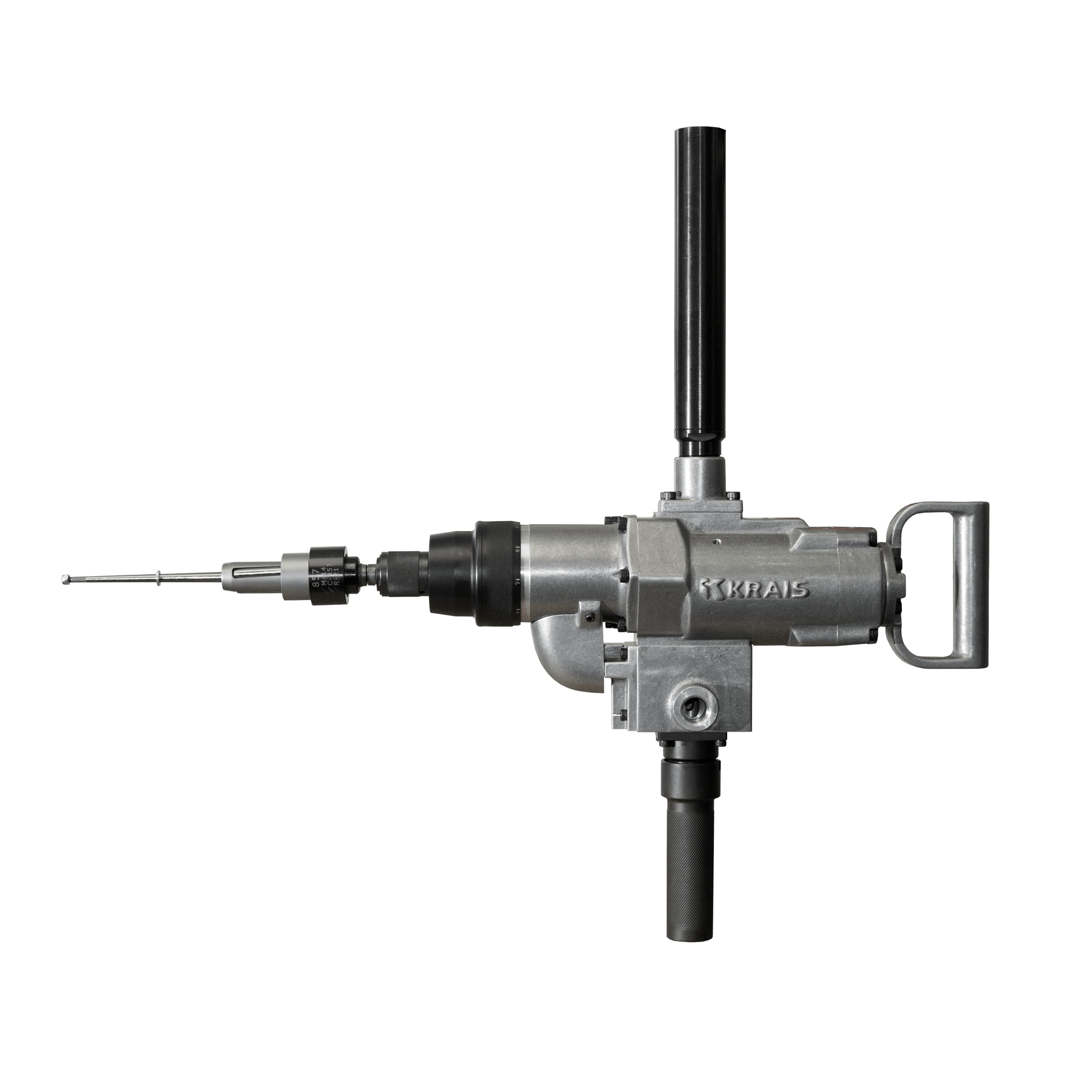

K60 Series Pneumatic Rolling Motor
Rolling motors controling expansion by the measurement of torque, stopping expanding according to a predetermined setting.
K60 Series Series (3 tools)
| model | Tube OD | Free speed | Torque (both) | Tool weigth | Tool length | Air use | Mandrel square | Standard chuck sizes | Optional chuck size | Add to quote | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | ||||||
| K60-900 | 1-1/2 in | 38,1 mm | 756 | 4.72 - 30.68 ft.lbs | 6,4 - 41,6 Nm | 27.01 lbs | 12,25 kg | 17.992 in | 457 mm | 2.47 CFM | 70 L/min | 1/2 in | 3/8, 1/2 | 3/4, 1 | Tool and partsGo for quote |
| K60-400 | 2 in | 50,8 mm | 400 | 9.44 - 60.85 ft.lbs | 12,8 - 82,5 Nm | 27.01 lbs | 12,25 kg | 17.992 in | 457 mm | 2.47 CFM | 70 L/min | 3/4 in | 3/4, 1 | 3/8, 1/2 | Tool and partsGo for quote |
| K60-250 | 2-1/2 in | 63,5 mm | 220 | 25.00 - 99.94 ft.lbs | 33,9 - 135,5 Nm | 27.01 lbs | 12,25 kg | 17.992 in | 457 mm | 2.47 CFM | 70 L/min | 3/4 in | 3/4, 1 | 3/8, 1/2 | Tool and partsGo for quote |
