1200

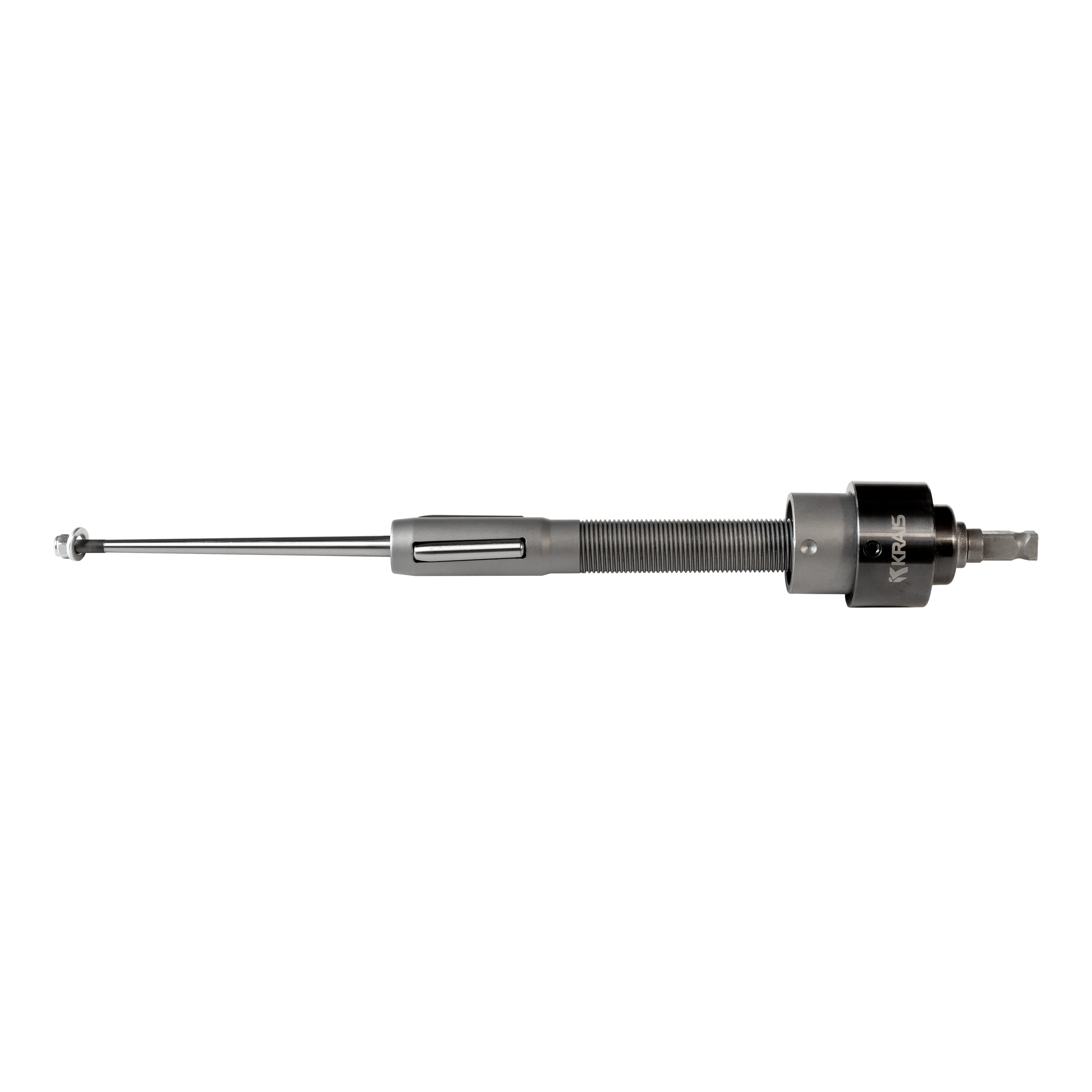

1200 Condenser and Exchangers Tube Expanders
Tool for expanding tubes in condensers, chillers, heat exchangers, finfan coolers, feedwater heaters and surface condensers.
1200 Series (102 tools)
| TOOL NO. | Tube OD | Tube Gauge [BWG] | Tube Gauge | Tube ID | Expansion range | Tube sheet thickness | Mandrel square | Add to quote | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | |||||
| 1195 | 3/8 in | 9,5 mm | 22-24 | 0,71 mm | 0.315 in | 8,00 mm | 0.307 - 0.358 in | 7,80 - 9,10 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1197 | 1/2 in | 12,7 mm | 14 | 2,11 mm | 0.334 in | 8,48 mm | 0.324 - 0.374 in | 8,23 - 9,50 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1199 | 1/2 in | 12,7 mm | 15 | 1,83 mm | 0.356 in | 9,04 mm | 0.348 - 0.398 in | 8,84 - 10,11 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1201 | 1/2 in | 12,7 mm | 16 | 1,65 mm | 0.370 in | 9,40 mm | 0.360 - 0.410 in | 9,14 - 10,41 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1203 | 1/2 in | 12,7 mm | 17 | 1,47 mm | 0.384 in | 9,75 mm | 0.374 - 0.424 in | 9,50 - 10,77 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1205 | 1/2 in | 12,7 mm | 18 | 1,24 mm | 0.402 in | 10,21 mm | 0.392 - 0.447 in | 9,96 - 11,35 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 5/8 in | 15,8 mm | 12 | 2,77 mm | 0.407 in | 10,34 mm | 0.392 - 0.447 in | 9,96 - 11,35 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1205[S] | 1/2 in | 12,7 mm | 20 | 0,89 mm | 0.430 in | 10,92 mm | 0.406 - 0.461 in | 10,31 - 11,71 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1207 | 5/8 in | 15,8 mm | 13 | 2,41 mm | 0.435 in | 11,05 mm | 0.425 - 0.480 in | 10,80 - 12,19 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1209 | 5/8 in | 15,8 mm | 14 | 2,11 mm | 0.459 in | 11,66 mm | 0.449 - 0.509 in | 11,40 - 12,93 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1210 | 5/8 in | 15,8 mm | 14 | 2,11 mm | 0.459 in | 11,66 mm | 0.449 - 0.509 in | 11,40 - 12,93 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1211 | 5/8 in | 15,8 mm | 15 | 1,83 mm | 0.481 in | 12,22 mm | 0.471 - 0.536 in | 11,96 - 13,61 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 3/4 in | 19 mm | 10 | 3,40 mm | 0.482 in | 12,24 mm | 0.471 - 0.536 in | 11,96 - 13,61 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1212 | 5/8 in | 15,8 mm | 15 | 1,83 mm | 0.481 in | 12,22 mm | 0.471 - 0.536 in | 11,96 - 13,61 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 3/4 in | 19 mm | 10 | 3,40 mm | 0.482 in | 12,24 mm | 0.471 - 0.536 in | 11,96 - 13,61 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1213 | 5/8 in | 15,8 mm | 16 | 1,65 mm | 0.495 in | 12,57 mm | 0.485 - 0.550 in | 12,32 - 13,97 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1214 | 5/8 in | 15,8 mm | 16 | 1,65 mm | 0.495 in | 12,57 mm | 0.485 - 0.550 in | 12,32 - 13,97 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1215 | 5/8 in | 15,8 mm | 17 | 1,47 mm | 0.509 in | 12,93 mm | 0.499 - 0.564 in | 12,67 - 14,33 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 3/4 in | 19 mm | 11 | 3,05 mm | 0.510 in | 12,95 mm | 0.499 - 0.564 in | 12,67 - 14,33 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1216 | 5/8 in | 15,8 mm | 17 | 1,47 mm | 0.509 in | 12,93 mm | 0.499 - 0.564 in | 12,67 - 14,33 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 3/4 in | 19 mm | 11 | 3,05 mm | 0.510 in | 12,95 mm | 0.499 - 0.564 in | 12,67 - 14,33 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1217 | 5/8 in | 15,8 mm | 18 | 1,24 mm | 0.527 in | 13,39 mm | 0.517 - 0.572 in | 13,13 - 14,53 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1218 | 5/8 in | 15,8 mm | 18 | 1,24 mm | 0.527 in | 13,39 mm | 0.517 - 0.572 in | 13,13 - 14,53 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1219 | 5/8 in | 15,8 mm | 19 | 1,07 mm | 0.541 in | 13,74 mm | 0.522 - 0.582 in | 13,26 - 14,78 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 3/4 in | 19 mm | 12 | 2,77 mm | 0.532 in | 13,51 mm | 0.522 - 0.582 in | 13,26 - 14,78 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1220 | 5/8 in | 15,8 mm | 19 | 1,07 mm | 0.541 in | 13,74 mm | 0.522 - 0.582 in | 13,26 - 14,78 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 3/4 in | 19 mm | 12 | 2,77 mm | 0.532 in | 13,51 mm | 0.522 - 0.582 in | 13,26 - 14,78 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1219[S] | 5/8 in | 15,8 mm | 20 | 0,89 mm | 0.555 in | 14,10 mm | 0.536 - 0.596 in | 13,61 - 15,14 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 5/8 in | 15,8 mm | 21 | 0,81 mm | 0.561 in | 14,25 mm | 0.536 - 0.596 in | 13,61 - 15,14 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 5/8 in | 15,8 mm | 22 | 0,71 mm | 0.569 in | 14,45 mm | 0.536 - 0.596 in | 13,61 - 15,14 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1220[S] | 5/8 in | 15,8 mm | 20 | 0,89 mm | 0.555 in | 14,10 mm | 0.536 - 0.596 in | 13,61 - 15,14 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 5/8 in | 15,8 mm | 21 | 0,81 mm | 0.561 in | 14,25 mm | 0.536 - 0.596 in | 13,61 - 15,14 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 5/8 in | 15,8 mm | 22 | 0,71 mm | 0.569 in | 14,45 mm | 0.536 - 0.596 in | 13,61 - 15,14 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1221 | 3/4 in | 19 mm | 13 | 2,41 mm | 0.560 in | 14,22 mm | 0.550 - 0.615 in | 13,97 - 15,62 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1222 | 3/4 in | 19 mm | 13 | 2,41 mm | 0.560 in | 14,22 mm | 0.550 - 0.615 in | 13,97 - 15,62 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1223 | 3/4 in | 19 mm | 14 | 2,11 mm | 0.584 in | 14,83 mm | 0.574 - 0.639 in | 14,58 - 16,23 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1224 | 3/4 in | 19 mm | 14 | 2,11 mm | 0.584 in | 14,83 mm | 0.574 - 0.639 in | 14,58 - 16,23 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1225 | 3/4 in | 19 mm | 15 | 1,83 mm | 0.606 in | 15,39 mm | 0.596 - 0.661 in | 15,14 - 16,79 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 7/8 in | 22,2 mm | 10 | 3,40 mm | 0.607 in | 15,42 mm | 0.596 - 0.661 in | 15,14 - 16,79 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1226 | 3/4 in | 19 mm | 15 | 1,83 mm | 0.606 in | 15,39 mm | 0.596 - 0.661 in | 15,14 - 16,79 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 7/8 in | 22,2 mm | 10 | 3,40 mm | 0.607 in | 15,42 mm | 0.596 - 0.661 in | 15,14 - 16,79 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1227 | 3/4 in | 19 mm | 16 | 1,65 mm | 0.620 in | 15,75 mm | 0.605 - 0.685 in | 15,37 - 17,40 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1228 | 3/4 in | 19 mm | 16 | 1,65 mm | 0.620 in | 15,75 mm | 0.605 - 0.685 in | 15,37 - 17,40 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1229 | 3/4 in | 19 mm | 17 | 1,47 mm | 0.634 in | 16,10 mm | 0.619 - 0.699 in | 15,72 - 17,75 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 3/4 in | 19 mm | 18 | 1,24 mm | 0.652 in | 16,56 mm | 0.619 - 0.699 in | 15,72 - 17,75 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 7/8 in | 22,2 mm | 11 | 3,05 mm | 0.635 in | 16,13 mm | 0.619 - 0.699 in | 15,72 - 17,75 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1230 | 3/4 in | 19 mm | 17 | 1,47 mm | 0.634 in | 16,10 mm | 0.619 - 0.699 in | 15,72 - 17,75 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 3/4 in | 19 mm | 18 | 1,24 mm | 0.652 in | 16,56 mm | 0.619 - 0.699 in | 15,72 - 17,75 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 7/8 in | 22,2 mm | 11 | 3,05 mm | 0.635 in | 16,13 mm | 0.619 - 0.699 in | 15,72 - 17,75 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1231 | 3/4 in | 19 mm | 19 | 1,07 mm | 0.666 in | 16,92 mm | 0.642 - 0.722 in | 16,31 - 18,34 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 3/4 in | 19 mm | 20 | 0,89 mm | 0.680 in | 17,27 mm | 0.642 - 0.722 in | 16,31 - 18,34 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 3/4 in | 19 mm | 21 | 0,81 mm | 0.686 in | 17,42 mm | 0.642 - 0.722 in | 16,31 - 18,34 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 3/4 in | 19 mm | 22 | 0,71 mm | 0.694 in | 17,63 mm | 0.642 - 0.722 in | 16,31 - 18,34 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 7/8 in | 22,2 mm | 12 | 2,77 mm | 0.657 in | 16,69 mm | 0.642 - 0.722 in | 16,31 - 18,34 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1232 | 3/4 in | 19 mm | 19 | 1,07 mm | 0.666 in | 16,92 mm | 0.642 - 0.722 in | 16,31 - 18,34 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 3/4 in | 19 mm | 20 | 0,89 mm | 0.680 in | 17,27 mm | 0.642 - 0.722 in | 16,31 - 18,34 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 3/4 in | 19 mm | 21 | 0,81 mm | 0.686 in | 17,42 mm | 0.642 - 0.722 in | 16,31 - 18,34 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 3/4 in | 19 mm | 22 | 0,71 mm | 0.694 in | 17,63 mm | 0.642 - 0.722 in | 16,31 - 18,34 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 7/8 in | 22,2 mm | 12 | 2,77 mm | 0.657 in | 16,69 mm | 0.642 - 0.722 in | 16,31 - 18,34 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1233 | 7/8 in | 22,2 mm | 13 | 2,41 mm | 0.685 in | 17,40 mm | 0.670 - 0.750 in | 17,02 - 19,05 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1234 | 7/8 in | 22,2 mm | 13 | 2,41 mm | 0.685 in | 17,40 mm | 0.670 - 0.750 in | 17,02 - 19,05 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1235 | 7/8 in | 22,2 mm | 14 | 2,11 mm | 0.709 in | 18,01 mm | 0.685 - 0.774 in | 17,40 - 19,66 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1 in | 25,4 mm | 9 | 3,76 mm | 0.704 in | 17,88 mm | 0.685 - 0.774 in | 17,40 - 19,66 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1236 | 7/8 in | 22,2 mm | 14 | 2,11 mm | 0.709 in | 18,01 mm | 0.685 - 0.774 in | 17,40 - 19,66 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1 in | 25,4 mm | 9 | 3,76 mm | 0.704 in | 17,88 mm | 0.685 - 0.774 in | 17,40 - 19,66 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1237 | 7/8 in | 22,2 mm | 15 | 1,83 mm | 0.731 in | 18,57 mm | 0.712 - 0.801 in | 18,08 - 20,35 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1 in | 25,4 mm | 10 | 3,40 mm | 0.732 in | 18,59 mm | 0.712 - 0.801 in | 18,08 - 20,35 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1238 | 7/8 in | 22,2 mm | 15 | 1,83 mm | 0.731 in | 18,57 mm | 0.712 - 0.801 in | 18,08 - 20,35 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1 in | 25,4 mm | 10 | 3,40 mm | 0.732 in | 18,59 mm | 0.712 - 0.801 in | 18,08 - 20,35 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1239 | 7/8 in | 22,2 mm | 16 | 1,65 mm | 0.745 in | 18,92 mm | 0.726 - 0.815 in | 18,44 - 20,70 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1240 | 7/8 in | 22,2 mm | 16 | 1,65 mm | 0.745 in | 18,92 mm | 0.726 - 0.815 in | 18,44 - 20,70 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1243 | 7/8 in | 22,2 mm | 17 | 1,47 mm | 0.759 in | 19,28 mm | 0.740 - 0.829 in | 18,80 - 21,06 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 7/8 in | 22,2 mm | 18 | 1,24 mm | 0.777 in | 19,74 mm | 0.740 - 0.829 in | 18,80 - 21,06 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1 in | 25,4 mm | 11 | 3,05 mm | 0.760 in | 19,30 mm | 0.740 - 0.829 in | 18,80 - 21,06 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1244 | 7/8 in | 22,2 mm | 17 | 1,47 mm | 0.759 in | 19,28 mm | 0.740 - 0.829 in | 18,80 - 21,06 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 7/8 in | 22,2 mm | 18 | 1,24 mm | 0.777 in | 19,74 mm | 0.740 - 0.829 in | 18,80 - 21,06 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1 in | 25,4 mm | 11 | 3,05 mm | 0.760 in | 19,30 mm | 0.740 - 0.829 in | 18,80 - 21,06 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1241 | 1 in | 25,4 mm | 8 | 4,19 mm | 0.670 in | 17,02 mm | 0.655 - 0.735 in | 16,64 - 18,67 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1242 | 1 in | 25,4 mm | 8 | 4,19 mm | 0.670 in | 17,02 mm | 0.655 - 0.735 in | 16,64 - 18,67 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1245 | 1 in | 25,4 mm | 12 | 2,77 mm | 0.782 in | 19,86 mm | 0.763 - 0.852 in | 19,38 - 21,64 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1246 | 1 in | 25,4 mm | 12 | 2,77 mm | 0.782 in | 19,86 mm | 0.763 - 0.852 in | 19,38 - 21,64 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1247 | 1 in | 25,4 mm | 13 | 2,41 mm | 0.810 in | 20,57 mm | 0.791 - 0.880 in | 20,09 - 22,35 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1248 | 1 in | 25,4 mm | 13 | 2,41 mm | 0.810 in | 20,57 mm | 0.791 - 0.880 in | 20,09 - 22,35 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1249 | 1 in | 25,4 mm | 14 | 2,11 mm | 0.834 in | 21,18 mm | 0.810 - 0.909 in | 20,57 - 23,09 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1-1/8 in | 28,5 mm | 9 | 3,76 mm | 0.829 in | 21,06 mm | 0.810 - 0.909 in | 20,57 - 23,09 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1250 | 1 in | 25,4 mm | 14 | 2,11 mm | 0.834 in | 21,18 mm | 0.810 - 0.909 in | 20,57 - 23,09 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1-1/8 in | 28,5 mm | 9 | 3,76 mm | 0.829 in | 21,06 mm | 0.810 - 0.909 in | 20,57 - 23,09 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1251 | 1 in | 25,4 mm | 15 | 1,83 mm | 0.856 in | 21,74 mm | 0.837 - 0.936 in | 21,26 - 23,77 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1 in | 25,4 mm | 16 | 1,65 mm | 0.870 in | 22,10 mm | 0.837 - 0.936 in | 21,26 - 23,77 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1-1/8 in | 28,5 mm | 10 | 3,40 mm | 0.857 in | 21,77 mm | 0.837 - 0.936 in | 21,26 - 23,77 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1252 | 1 in | 25,4 mm | 15 | 1,83 mm | 0.856 in | 21,74 mm | 0.837 - 0.936 in | 21,26 - 23,77 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1 in | 25,4 mm | 16 | 1,65 mm | 0.870 in | 22,10 mm | 0.837 - 0.936 in | 21,26 - 23,77 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1-1/8 in | 28,5 mm | 10 | 3,40 mm | 0.857 in | 21,77 mm | 0.837 - 0.936 in | 21,26 - 23,77 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1255 | 1 in | 25,4 mm | 17 | 1,47 mm | 0.884 in | 22,45 mm | 0.865 - 0.964 in | 21,97 - 24,49 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1 in | 25,4 mm | 18 | 1,24 mm | 0.902 in | 22,91 mm | 0.865 - 0.964 in | 21,97 - 24,49 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1 in | 25,4 mm | 19 | 1,07 mm | 0.916 in | 23,27 mm | 0.865 - 0.964 in | 21,97 - 24,49 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1 in | 25,4 mm | 20 | 0,89 mm | 0.930 in | 23,62 mm | 0.865 - 0.964 in | 21,97 - 24,49 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1-1/8 in | 28,5 mm | 11 | 3,05 mm | 0.885 in | 22,48 mm | 0.865 - 0.964 in | 21,97 - 24,49 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | ||
| 1256 | 1 in | 25,4 mm | 17 | 1,47 mm | 0.884 in | 22,45 mm | 0.865 - 0.964 in | 21,97 - 24,49 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1 in | 25,4 mm | 18 | 1,24 mm | 0.902 in | 22,91 mm | 0.865 - 0.964 in | 21,97 - 24,49 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1 in | 25,4 mm | 19 | 1,07 mm | 0.916 in | 23,27 mm | 0.865 - 0.964 in | 21,97 - 24,49 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1 in | 25,4 mm | 20 | 0,89 mm | 0.930 in | 23,62 mm | 0.865 - 0.964 in | 21,97 - 24,49 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1-1/8 in | 28,5 mm | 11 | 3,05 mm | 0.885 in | 22,48 mm | 0.865 - 0.964 in | 21,97 - 24,49 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | ||
| 1253 | 1-1/8 in | 28,5 mm | 8 | 4,19 mm | 0.795 in | 20,19 mm | 0.776 - 0.875 in | 19,71 - 22,23 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 3/8 | Tool and partsGo for quote |
| 1254 | 1-1/8 in | 28,5 mm | 8 | 4,19 mm | 0.795 in | 20,19 mm | 0.776 - 0.875 in | 19,71 - 22,23 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 3/8 | Tool and partsGo for quote |
| 1257 | 1-1/8 in | 28,5 mm | 12 | 2,77 mm | 0.907 in | 23,04 mm | 0.883 - 0.982 in | 22,43 - 24,94 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1258 | 1-1/8 in | 28,5 mm | 12 | 2,77 mm | 0.907 in | 23,04 mm | 0.883 - 0.982 in | 22,43 - 24,94 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1259 | 1-1/8 in | 28,5 mm | 13 | 2,41 mm | 0.935 in | 23,75 mm | 0.916 - 1.015 in | 23,27 - 25,78 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1260 | 1-1/8 in | 28,5 mm | 13 | 2,41 mm | 0.935 in | 23,75 mm | 0.916 - 1.015 in | 23,27 - 25,78 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1261 | 1-1/8 in | 28,5 mm | 14 | 2,11 mm | 0.959 in | 24,36 mm | 0.935 - 1.044 in | 23,75 - 26,52 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/4 in | 31,7 mm | 9 | 3,76 mm | 0.954 in | 24,23 mm | 0.935 - 1.044 in | 23,75 - 26,52 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1262 | 1-1/8 in | 28,5 mm | 14 | 2,11 mm | 0.959 in | 24,36 mm | 0.935 - 1.044 in | 23,75 - 26,52 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/4 in | 31,7 mm | 9 | 3,76 mm | 0.954 in | 24,23 mm | 0.935 - 1.044 in | 23,75 - 26,52 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1263 | 1-1/8 in | 28,5 mm | 15 | 1,83 mm | 0.981 in | 24,92 mm | 0.962 - 1.071 in | 24,43 - 27,20 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/8 in | 28,5 mm | 16 | 1,65 mm | 0.995 in | 25,27 mm | 0.962 - 1.071 in | 24,43 - 27,20 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1-1/4 in | 31,7 mm | 10 | 3,40 mm | 0.982 in | 24,94 mm | 0.962 - 1.071 in | 24,43 - 27,20 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1264 | 1-1/8 in | 28,5 mm | 15 | 1,83 mm | 0.981 in | 24,92 mm | 0.962 - 1.071 in | 24,43 - 27,20 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/8 in | 28,5 mm | 16 | 1,65 mm | 0.995 in | 25,27 mm | 0.962 - 1.071 in | 24,43 - 27,20 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1-1/4 in | 31,7 mm | 10 | 3,40 mm | 0.982 in | 24,94 mm | 0.962 - 1.071 in | 24,43 - 27,20 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1267 | 1-1/8 in | 28,5 mm | 17 | 1,47 mm | 1.009 in | 25,63 mm | 0.990 - 1.099 in | 25,15 - 27,91 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/8 in | 28,5 mm | 18 | 1,24 mm | 1.027 in | 26,09 mm | 0.990 - 1.099 in | 25,15 - 27,91 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1-1/4 in | 31,7 mm | 11 | 3,05 mm | 1.010 in | 25,65 mm | 0.990 - 1.099 in | 25,15 - 27,91 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1268 | 1-1/8 in | 28,5 mm | 17 | 1,47 mm | 1.009 in | 25,63 mm | 0.990 - 1.099 in | 25,15 - 27,91 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/8 in | 28,5 mm | 18 | 1,24 mm | 1.027 in | 26,09 mm | 0.990 - 1.099 in | 25,15 - 27,91 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1-1/4 in | 31,7 mm | 11 | 3,05 mm | 1.010 in | 25,65 mm | 0.990 - 1.099 in | 25,15 - 27,91 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1265 | 1-1/4 in | 31,7 mm | 8 | 4,19 mm | 0.920 in | 23,37 mm | 0.901 - 1.010 in | 22,89 - 25,65 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1266 | 1-1/4 in | 31,7 mm | 8 | 4,19 mm | 0.920 in | 23,37 mm | 0.901 - 1.010 in | 22,89 - 25,65 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1269 | 1-1/4 in | 31,7 mm | 12 | 2,77 mm | 1.032 in | 26,21 mm | 1.013 - 1.122 in | 25,73 - 28,50 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1270 | 1-1/4 in | 31,7 mm | 12 | 2,77 mm | 1.032 in | 26,21 mm | 1.013 - 1.122 in | 25,73 - 28,50 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1271 | 1-1/4 in | 31,7 mm | 13 | 2,41 mm | 1.060 in | 26,92 mm | 1.041 - 1.150 in | 26,44 - 29,21 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1272 | 1-1/4 in | 31,7 mm | 13 | 2,41 mm | 1.060 in | 26,92 mm | 1.041 - 1.150 in | 26,44 - 29,21 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1273 | 1-1/4 in | 31,7 mm | 14 | 2,11 mm | 1.084 in | 27,53 mm | 1.060 - 1.169 in | 26,92 - 29,69 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1-3/8 in | 34,9 mm | 9 | 3,76 mm | 1.079 in | 27,41 mm | 1.060 - 1.169 in | 26,92 - 29,69 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1274 | 1-1/4 in | 31,7 mm | 14 | 2,11 mm | 1.084 in | 27,53 mm | 1.060 - 1.169 in | 26,92 - 29,69 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1-3/8 in | 34,9 mm | 9 | 3,76 mm | 1.079 in | 27,41 mm | 1.060 - 1.169 in | 26,92 - 29,69 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1275 | 1-1/4 in | 31,7 mm | 15 | 1,83 mm | 1.106 in | 28,09 mm | 1.087 - 1.196 in | 27,61 - 30,38 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/4 in | 31,7 mm | 16 | 1,65 mm | 1.120 in | 28,45 mm | 1.087 - 1.196 in | 27,61 - 30,38 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1-3/8 in | 34,9 mm | 10 | 3,40 mm | 1.107 in | 28,12 mm | 1.087 - 1.196 in | 27,61 - 30,38 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1276 | 1-1/4 in | 31,7 mm | 15 | 1,83 mm | 1.106 in | 28,09 mm | 1.087 - 1.196 in | 27,61 - 30,38 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/4 in | 31,7 mm | 16 | 1,65 mm | 1.120 in | 28,45 mm | 1.087 - 1.196 in | 27,61 - 30,38 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1-3/8 in | 34,9 mm | 10 | 3,40 mm | 1.107 in | 28,12 mm | 1.087 - 1.196 in | 27,61 - 30,38 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1279 | 1-1/4 in | 31,7 mm | 17 | 1,47 mm | 1.134 in | 28,80 mm | 1.115 - 1.224 in | 28,32 - 31,09 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/4 in | 31,7 mm | 18 | 1,24 mm | 1.152 in | 29,26 mm | 1.115 - 1.224 in | 28,32 - 31,09 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1-3/8 in | 34,9 mm | 11 | 3,05 mm | 1.135 in | 28,83 mm | 1.115 - 1.224 in | 28,32 - 31,09 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1280 | 1-1/4 in | 31,7 mm | 17 | 1,47 mm | 1.134 in | 28,80 mm | 1.115 - 1.224 in | 28,32 - 31,09 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/4 in | 31,7 mm | 18 | 1,24 mm | 1.152 in | 29,26 mm | 1.115 - 1.224 in | 28,32 - 31,09 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1-3/8 in | 34,9 mm | 11 | 3,05 mm | 1.135 in | 28,83 mm | 1.115 - 1.224 in | 28,32 - 31,09 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1277 | 1-3/8 in | 34,9 mm | 8 | 4,19 mm | 1.045 in | 26,54 mm | 1.026 - 1.135 in | 26,06 - 28,83 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1278 | 1-3/8 in | 34,9 mm | 8 | 4,19 mm | 1.045 in | 26,54 mm | 1.026 - 1.135 in | 26,06 - 28,83 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1281 | 1-3/8 in | 34,9 mm | 12 | 2,77 mm | 1.157 in | 29,39 mm | 1.133 - 1.242 in | 28,78 - 31,55 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1282 | 1-3/8 in | 34,9 mm | 12 | 2,77 mm | 1.157 in | 29,39 mm | 1.133 - 1.242 in | 28,78 - 31,55 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1283 | 1-3/8 in | 34,9 mm | 13 | 2,41 mm | 1.185 in | 30,10 mm | 1.160 - 1.275 in | 29,46 - 32,39 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1284 | 1-3/8 in | 34,9 mm | 13 | 2,41 mm | 1.185 in | 30,10 mm | 1.160 - 1.275 in | 29,46 - 32,39 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1285 | 1-3/8 in | 34,9 mm | 14 | 2,11 mm | 1.209 in | 30,71 mm | 1.179 - 1.294 in | 29,95 - 32,87 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/2 in | 38,1 mm | 9 | 3,76 mm | 1.204 in | 30,58 mm | 1.145 - 1.294 in | 29,08 - 32,87 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1286 | 1-3/8 in | 34,9 mm | 14 | 2,11 mm | 1.209 in | 30,71 mm | 1.179 - 1.294 in | 29,95 - 32,87 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/2 in | 38,1 mm | 9 | 3,76 mm | 1.204 in | 30,58 mm | 1.145 - 1.294 in | 29,08 - 32,87 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1287 | 1-3/8 in | 34,9 mm | 15 | 1,83 mm | 1.231 in | 31,27 mm | 1.206 - 1.321 in | 30,63 - 33,55 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1-3/8 in | 34,9 mm | 16 | 1,65 mm | 1.245 in | 31,62 mm | 1.206 - 1.321 in | 30,63 - 33,55 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1-1/2 in | 38,1 mm | 10 | 3,40 mm | 1.232 in | 31,29 mm | 1.206 - 1.321 in | 30,63 - 33,55 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1288 | 1-3/8 in | 34,9 mm | 15 | 1,83 mm | 1.231 in | 31,27 mm | 1.206 - 1.321 in | 30,63 - 33,55 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1-3/8 in | 34,9 mm | 16 | 1,65 mm | 1.245 in | 31,62 mm | 1.206 - 1.321 in | 30,63 - 33,55 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1-1/2 in | 38,1 mm | 10 | 3,40 mm | 1.232 in | 31,29 mm | 1.206 - 1.321 in | 30,63 - 33,55 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1289 | 1-1/2 in | 38,1 mm | 8 | 4,19 mm | 1.170 in | 29,72 mm | 1.145 - 1.260 in | 29,08 - 32,00 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1290 | 1-1/2 in | 38,1 mm | 8 | 4,19 mm | 1.170 in | 29,72 mm | 1.145 - 1.260 in | 29,08 - 32,00 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1291 | 1-1/2 in | 38,1 mm | 11 | 3,05 mm | 1.260 in | 32,00 mm | 1.235 - 1.350 in | 31,37 - 34,29 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1292 | 1-1/2 in | 38,1 mm | 11 | 3,05 mm | 1.260 in | 32,00 mm | 1.235 - 1.350 in | 31,37 - 34,29 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1293 | 1-1/2 in | 38,1 mm | 12 | 2,77 mm | 1.282 in | 32,56 mm | 1.257 - 1.372 in | 31,93 - 34,85 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1294 | 1-1/2 in | 38,1 mm | 12 | 2,77 mm | 1.282 in | 32,56 mm | 1.257 - 1.372 in | 31,93 - 34,85 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1295 | 1-1/2 in | 38,1 mm | 13 | 2,41 mm | 1.310 in | 33,27 mm | 1.285 - 1.400 in | 32,64 - 35,56 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/2 in | 38,1 mm | 14 | 2,11 mm | 1.334 in | 33,88 mm | 1.285 - 1.400 in | 32,64 - 35,56 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1296 | 1-1/2 in | 38,1 mm | 13 | 2,41 mm | 1.310 in | 33,27 mm | 1.285 - 1.400 in | 32,64 - 35,56 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/2 in | 38,1 mm | 14 | 2,11 mm | 1.334 in | 33,88 mm | 1.285 - 1.400 in | 32,64 - 35,56 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1297 | 1-1/2 in | 38,1 mm | 15 | 1,83 mm | 1.356 in | 34,44 mm | 1.331 - 1.446 in | 33,81 - 36,73 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/2 in | 38,1 mm | 16 | 1,65 mm | 1.370 in | 34,80 mm | 1.331 - 1.446 in | 33,81 - 36,73 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1298 | 1-1/2 in | 38,1 mm | 15 | 1,83 mm | 1.356 in | 34,44 mm | 1.331 - 1.446 in | 33,81 - 36,73 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/2 in | 38,1 mm | 16 | 1,65 mm | 1.370 in | 34,80 mm | 1.331 - 1.446 in | 33,81 - 36,73 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1299 | 1-1/2 in | 38,1 mm | 17 | 1,47 mm | 1.384 in | 35,15 mm | 1.331 - 1.472 in | 33,81 - 37,39 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/2 in | 38,1 mm | 18 | 1,24 mm | 1.402 in | 35,61 mm | 1.331 - 1.472 in | 33,81 - 37,39 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1-1/2 in | 38,1 mm | 19 | 1,07 mm | 1.416 in | 35,97 mm | 1.331 - 1.472 in | 33,81 - 37,39 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1-1/2 in | 38,1 mm | 20 | 0,89 mm | 1.430 in | 36,32 mm | 1.331 - 1.472 in | 33,81 - 37,39 mm | 1.500 - 6.000 in | 38,1 - 152,4 mm | 1/2 | ||
| 1300 | 1-1/2 in | 38,1 mm | 17 | 1,47 mm | 1.384 in | 35,15 mm | 1.331 - 1.472 in | 33,81 - 37,39 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | Tool and partsGo for quote |
| 1-1/2 in | 38,1 mm | 18 | 1,24 mm | 1.402 in | 35,61 mm | 1.331 - 1.472 in | 33,81 - 37,39 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1-1/2 in | 38,1 mm | 19 | 1,07 mm | 1.416 in | 35,97 mm | 1.331 - 1.472 in | 33,81 - 37,39 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
| 1-1/2 in | 38,1 mm | 20 | 0,89 mm | 1.430 in | 36,32 mm | 1.331 - 1.472 in | 33,81 - 37,39 mm | 2.248 - 6.748 in | 57,1 - 171,4 mm | 1/2 | ||
900Condenser and Exchangers Tube Expanders
1300Tube expander for small coolers
800Condenser and Exchangers Tube Expanders
800-5Five Roll Condenser Tube Expanders
1200-ACondenser and Exchangers Tube Expanders
1200-BCondenser and Exchangers Tube Expanders
1200-CCondenser and Exchangers Tube Expanders
1200-5Five Roll Condenser Tube Expanders
1200-5-AFive Roll Condenser Tube Expanders
1200-5-BFive Roll Condenser Tube Expanders
1200-5-CFive Roll Condenser Tube Expanders
8012Condenser and exchangers tube expanders
F600Flare Type Tube Expanders
TACK
