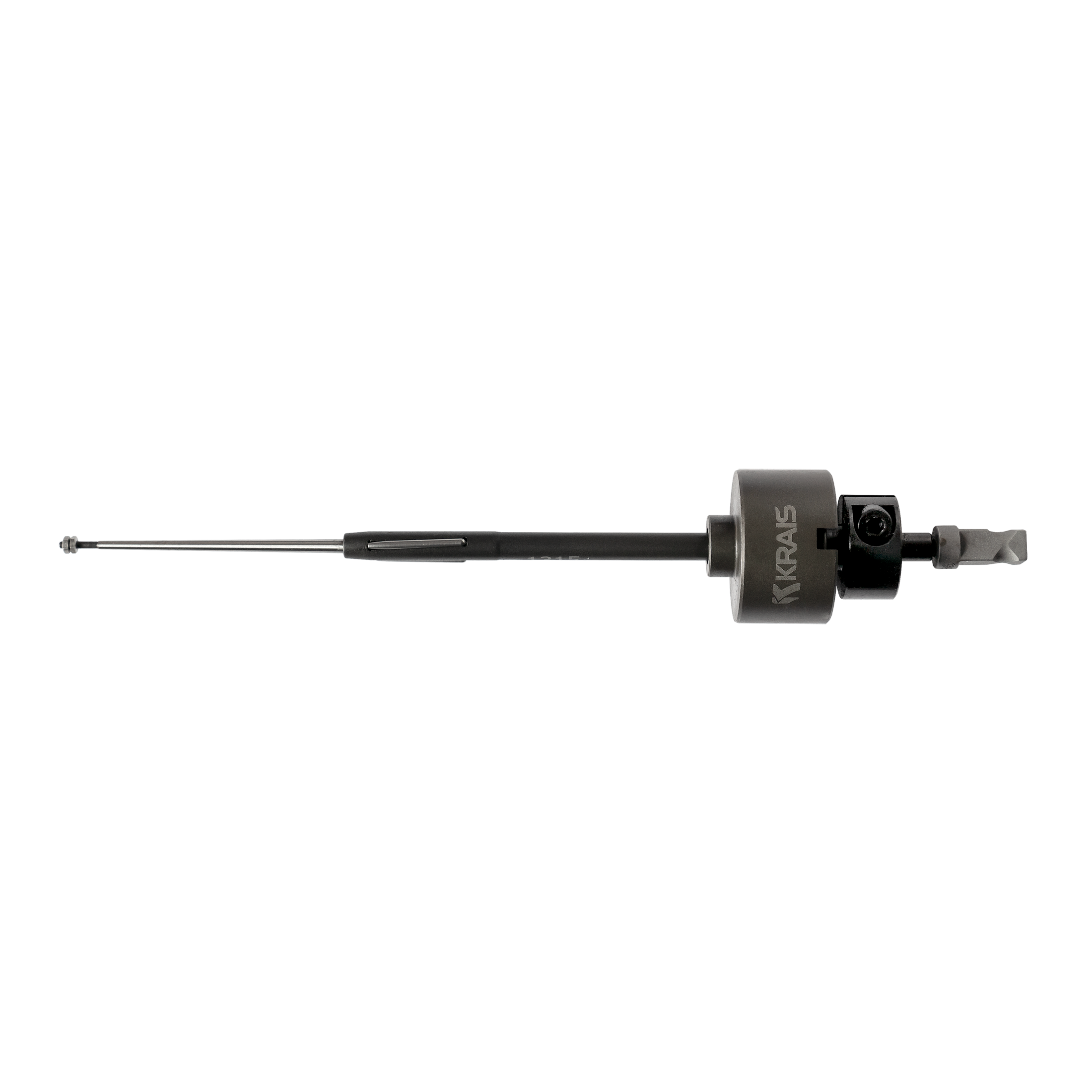

1300 Tube expander for small coolers

KRAIS 1300 series expanders are designed for small tubing applications where additional reach and a longer roll zone are required. They are well suited for thick tube sheets and deeper seating geometries, where standard reach may be limited. These tools are commonly used on small coolers, particularly during service and retubing work, where tube access, sheet depth, and joint geometry determine the need for extended reach.

Applications

Small heat exchanger retubing in chemical processing plants
Auxiliary cooler maintenance in oil and gas refineries

1300 Series (18 tools)

TOOL NO.	Tube OD		Tube Gauge [BWG]	Tube Gauge	Tube ID		Expansion range		Tube sheet thickness		Mandrel square	Add to quote
TOOL NO.	Imperial	Metric	Tube Gauge [BWG]	Tube Gauge	Imperial	Metric	Imperial	Metric	Imperial	Metric	Mandrel square	Add to quote
1315	3/8 in	9,5 mm	15	1,83 mm	0.231 in	5,87 mm	0.230 - 0.265 in	5,84 - 6,73 mm	0.748 - 2.992 in	19,0 - 76,0 mm	1/4”	Tool and partsGo for quote
1316	3/8 in	9,5 mm	15	1,83 mm	0.231 in	5,87 mm	0.230 - 0.265 in	5,84 - 6,73 mm	1.248 - 3.500 in	31,7 - 88,9 mm	1/4”	Tool and partsGo for quote
1319	3/8 in	9,5 mm	16	1,65 mm	0.245 in	6,22 mm	0.240 - 0.275 in	6,10 - 6,99 mm	0.748 - 2.992 in	19,0 - 76,0 mm	1/4”	Tool and partsGo for quote
1319-L	3/8 in	9,5 mm	16	1,65 mm	0.245 in	6,22 mm	0.240 - 0.275 in	6,10 - 6,99 mm	1.248 - 3.500 in	31,7 - 88,9 mm	1/4”	Tool and partsGo for quote
1317	3/8 in	9,5 mm	17	1,47 mm	0.259 in	6,58 mm	0.255 - 0.289 in	6,48 - 7,34 mm	0.748 - 2.992 in	19,0 - 76,0 mm	1/4”	Tool and partsGo for quote
1318	3/8 in	9,5 mm	17	1,47 mm	0.259 in	6,58 mm	0.255 - 0.289 in	6,48 - 7,34 mm	1.248 - 3.500 in	31,7 - 88,9 mm	1/4”	Tool and partsGo for quote
1301	3/8 in	9,5 mm	18	1,24 mm	0.277 in	7,04 mm	0.272 - 0.307 in	6,91 - 7,80 mm	0.748 - 2.992 in	19,0 - 76,0 mm	1/4”	Tool and partsGo for quote
1302	3/8 in	9,5 mm	18	1,24 mm	0.277 in	7,04 mm	0.272 - 0.307 in	6,91 - 7,80 mm	1.248 - 3.500 in	31,7 - 88,9 mm	1/4”	Tool and partsGo for quote
1303	3/8 in	9,5 mm	19	1,07 mm	0.291 in	7,39 mm	0.286 - 0.320 in	7,26 - 8,13 mm	0.748 - 2.992 in	19,0 - 76,0 mm	1/4”	Tool and partsGo for quote
1304	3/8 in	9,5 mm	19	1,07 mm	0.291 in	7,39 mm	0.286 - 0.320 in	7,26 - 8,13 mm	1.248 - 3.500 in	31,7 - 88,9 mm	1/4”	Tool and partsGo for quote
1305	3/8 in	9,5 mm	20	0,89 mm	0.305 in	7,75 mm	0.300 - 0.334 in	7,62 - 8,48 mm	0.748 - 2.992 in	19,0 - 76,0 mm	1/4”	Tool and partsGo for quote
1306	3/8 in	9,5 mm	20	0,89 mm	0.305 in	7,75 mm	0.300 - 0.334 in	7,62 - 8,48 mm	1.248 - 3.500 in	31,7 - 88,9 mm	1/4”	Tool and partsGo for quote
1307	3/8 in	9,5 mm	21	0,81 mm	0.311 in	7,90 mm	0.306 - 0.340 in	7,77 - 8,64 mm	0.748 - 2.992 in	19,0 - 76,0 mm	1/4”	Tool and partsGo for quote
1308	3/8 in	9,5 mm	21	0,81 mm	0.311 in	7,90 mm	0.306 - 0.340 in	7,77 - 8,64 mm	1.248 - 3.500 in	31,7 - 88,9 mm	1/4”	Tool and partsGo for quote
1309	3/8 in	9,5 mm	22	0,71 mm	0.319 in	8,10 mm	0.314 - 0.349 in	7,98 - 8,86 mm	0.748 - 2.992 in	19,0 - 76,0 mm	1/4”	Tool and partsGo for quote
1310	3/8 in	9,5 mm	22	0,71 mm	0.319 in	8,10 mm	0.314 - 0.349 in	7,98 - 8,86 mm	1.248 - 3.500 in	31,7 - 88,9 mm	1/4”	Tool and partsGo for quote
1311	3/8 in	9,5 mm	23	0,64 mm	0.325 in	8,26 mm	0.320 - 0.357 in	8,13 - 9,07 mm	0.748 - 2.992 in	19,0 - 76,0 mm	1/4”	Tool and partsGo for quote
1311	3/8 in	9,5 mm	24	0,56 mm	0.331 in	8,41 mm	0.319 - 0.357 in	8,10 - 9,07 mm	0.748 - 2.992 in	19,0 - 76,0 mm	1/4”	Tool and partsGo for quote
1312	3/8 in	9,5 mm	23	0,64 mm	0.325 in	8,26 mm	0.320 - 0.357 in	8,13 - 9,07 mm	1.248 - 3.500 in	31,7 - 88,9 mm	1/4”	Tool and partsGo for quote
1312	3/8 in	9,5 mm	24	0,56 mm	0.331 in	8,41 mm	0.319 - 0.357 in	8,10 - 9,07 mm	1.248 - 3.500 in	31,7 - 88,9 mm	1/4”	Tool and partsGo for quote
