PTTC Solid body

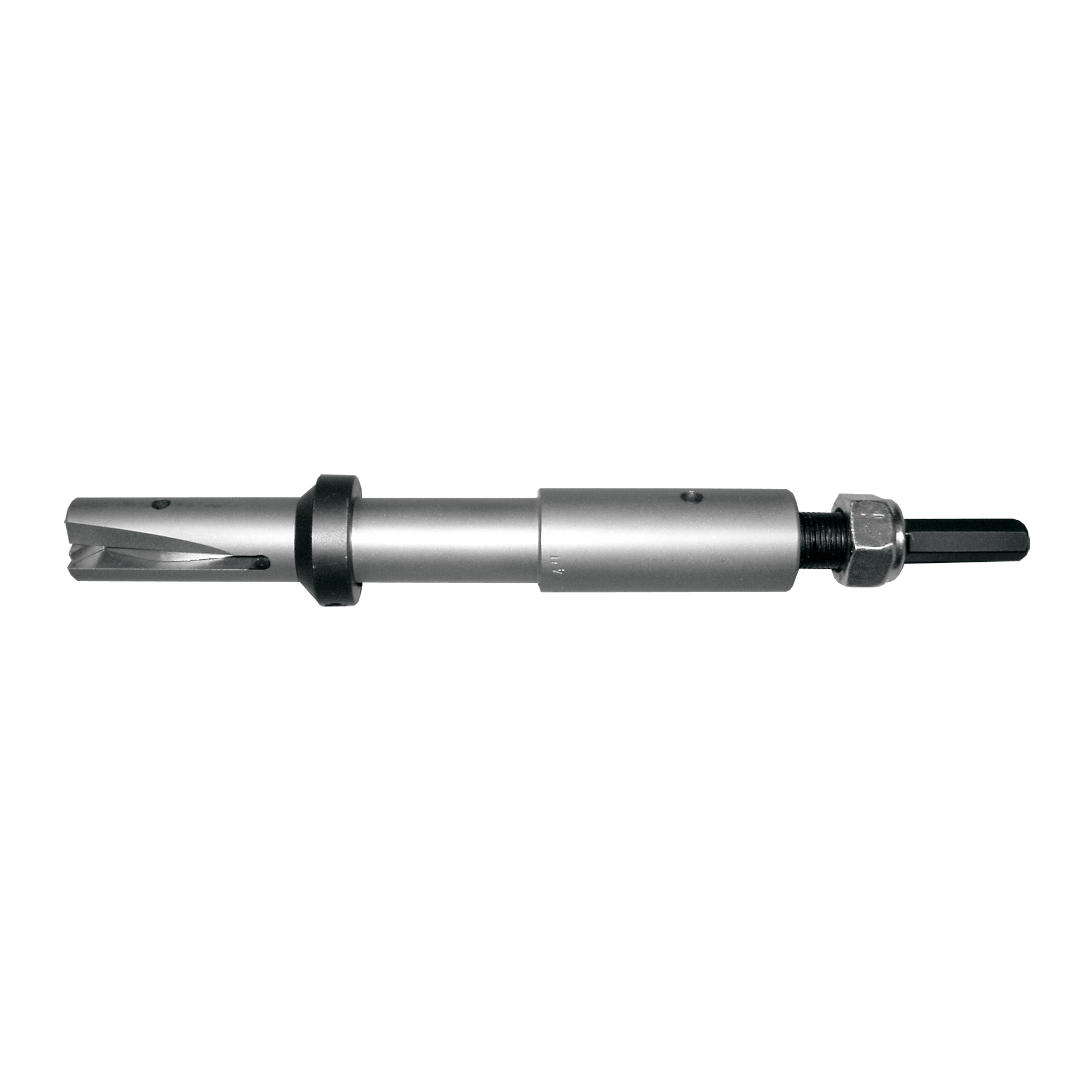

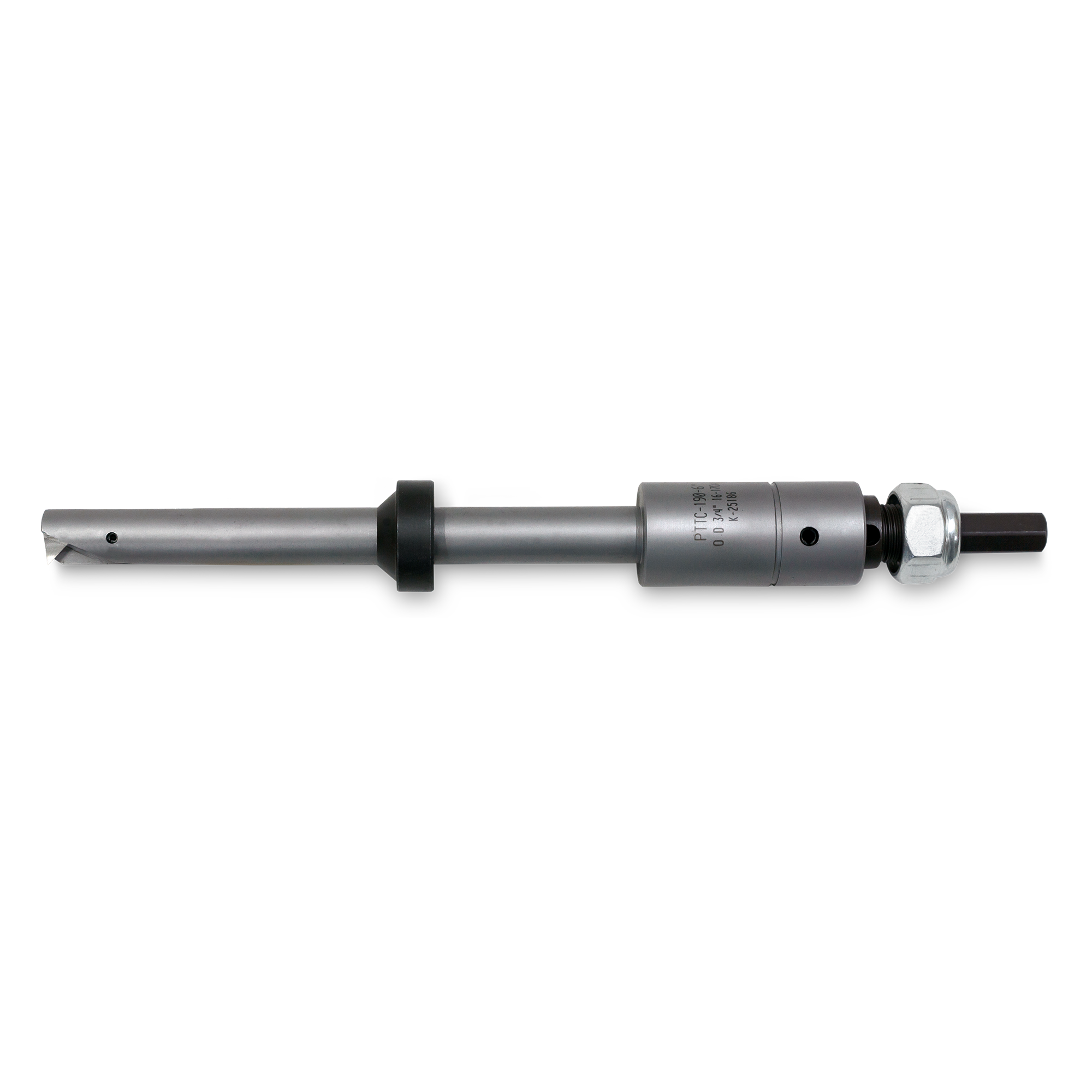

PTTC Solid body Solid body push type tube cutter
Tool with adjustable cutter blade depth allow the tube to be cut through, using one or two blades made ut of the HSS.
PTTC Solid body Series (51 tools)
| TOOL NO. | TUBE OD [INCH] | Tube Gauge [BWG] | Tube ID | Tool OD | NO OF BLADES | DRIVE SHANK | Add to quote | ||
|---|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | Imperial | Metric | ||||||
| PTTC-95-3"-22 | 3/8 in | 9,5 mm | 22-24 | 0.319 - 0.331 in | 8,10 - 8,40 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-127-3"-14 | 1/2 in | 12,7 mm | 14-15 | 0.335 - 0.356 in | 8,50 - 9,04 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-127-3"-16 | 1/2 in | 12,7 mm | 16-17 | 0.370 - 0.384 in | 9,40 - 9,75 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-158-3"-12 | 5/8 in | 15,8 mm | 12-13 | 0.406 - 0.396 in | 10,30 - 10,05 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-158-3"-14 | 5/8 in | 15,8 mm | 14-15 | 0.459 - 0.481 in | 11,66 - 12,22 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-158-3"-16 | 5/8 in | 15,8 mm | 16-17 | 0.495 - 0.509 in | 12,57 - 12,93 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-158-3"-18 | 5/8 in | 15,8 mm | 18-19 | 0.528 - 0.541 in | 13,40 - 13,74 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-158-3"-20 | 5/8 in | 15,8 mm | 20-22 | 0.555 - 0.569 in | 14,10 - 14,45 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-190-3"-14 | 3/4 in | 19 mm | 14-15 | 0.583 - 0.606 in | 14,80 - 15,40 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-190-3"-16 | 3/4 in | 19 mm | 16-17 | 0.620 - 0.634 in | 15,75 - 16,10 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-190-3"-18 | 3/4 in | 19 mm | 18-19 | 0.652 - 0.665 in | 16,56 - 16,90 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-190-3"-20 | 3/4 in | 19 mm | 20-22 | 0.680 - 0.694 in | 17,27 - 17,63 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-222-3"-10 | 7/8 in | 22,2 mm | 10-11 | 0.607 - 0.635 in | 15,42 - 16,13 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-222-3"-12 | 7/8 in | 22,2 mm | 12-13 | 0.657 - 0.685 in | 16,69 - 17,40 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-222-3"-14 | 7/8 in | 22,2 mm | 14-15 | 0.709 - 0.731 in | 18,01 - 18,57 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-222-3"-16 | 7/8 in | 22,2 mm | 16-17 | 0.745 - 0.759 in | 18,92 - 19,28 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-222-3"-18 | 7/8 in | 22,2 mm | 18-20 | 0.777 - 0.804 in | 19,74 - 20,42 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-254-3"-8 | 1 in | 25,4 mm | 8-9 | 0.670 - 0.704 in | 17,02 - 17,88 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-254-3"-10 | 1 in | 25,4 mm | 10-11 | 0.732 - 0.760 in | 18,59 - 19,30 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-254-3"-12 | 1 in | 25,4 mm | 12-13 | 0.782 - 0.810 in | 19,86 - 20,57 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-254-3"-14 | 1 in | 25,4 mm | 14-15 | 0.834 - 0.856 in | 21,18 - 21,74 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-254-3"-16 | 1 in | 25,4 mm | 16-17 | 0.870 - 0.884 in | 22,10 - 22,45 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-254-3"-18 | 1 in | 25,4 mm | 18-19 | 0.902 - 0.916 in | 22,91 - 23,27 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-254-3"-20 | 1 in | 25,4 mm | 20-22 | 0.930 - 0.941 in | 23,62 - 23,89 mm | 1 mm | 1 | HEX-1/2 | Tool and partsGo for quote |
| PTTC-285-3"-13 | 1-1/8 in | 28,5 mm | 13-14 | 0.935 - 0.959 in | 23,75 - 24,36 mm | 1 mm | 1 | HEX-5/8 | Tool and partsGo for quote |
| PTTC-285-3"-14 | 1-1/8 in | 28,5 mm | 15-16 | 0.981 - 0.995 in | 24,92 - 25,27 mm | 1 mm | 1 | HEX-5/8 | Tool and partsGo for quote |
| PTTC-285-3"-17 | 1-1/8 in | 28,5 mm | 17-18 | 1.009 - 1.027 in | 25,63 - 26,09 mm | 1 mm | 1 | HEX-5/8 | Tool and partsGo for quote |
| PTTC-317-3"-12 | 1-1/4 in | 31,7 mm | 12-13 | 1.032 - 1.060 in | 26,21 - 26,92 mm | 1 mm | 1 | HEX-5/8 | Tool and partsGo for quote |
| PTTC-317-3"-14 | 1-1/4 in | 31,7 mm | 14-15 | 1.084 - 1.106 in | 27,53 - 28,09 mm | 1 mm | 1 | HEX-5/8 | Tool and partsGo for quote |
| PTTC-317-3"-16 | 1-1/4 in | 31,7 mm | 16-17 | 1.120 - 1.134 in | 28,45 - 28,80 mm | 1 mm | 1 | HEX-5/8 | Tool and partsGo for quote |
| PTTC-317-3"-20 | 1-1/4 in | 31,7 mm | 18-20 | 1.152 - 1.178 in | 29,26 - 29,92 mm | 1 mm | 1 | HEX-5/8 | Tool and partsGo for quote |
| PTTC-381-3"-8 | 1-1/2 in | 38,1 mm | 8-9 | 1.170 - 1.204 in | 29,72 - 30,58 mm | 1 mm | 1 | HEX-5/8 | Tool and partsGo for quote |
| PTTC-381-3"-10 | 1-1/2 in | 38,1 mm | 10-11 | 1.232 - 1.260 in | 31,29 - 32,00 mm | 1 mm | 1 | HEX-5/8 | Tool and partsGo for quote |
| PTTC-381-3"-12 | 1-1/2 in | 38,1 mm | 12-13 | 1.282 - 1.310 in | 32,56 - 33,27 mm | 1 mm | 1 | HEX-5/8 | Tool and partsGo for quote |
| PTTC-381-3"-14 | 1-1/2 in | 38,1 mm | 14-15 | 1.334 - 1.356 in | 33,88 - 34,44 mm | 1 mm | 1 | HEX-5/8 | Tool and partsGo for quote |
| PTTC-381-3"-16 | 1-1/2 in | 38,1 mm | 16-17 | 1.370 - 1.384 in | 34,80 - 35,15 mm | 1 mm | 1 | HEX-5/8 | Tool and partsGo for quote |
| PTTC-381-3"-18 | 1-1/2 in | 38,1 mm | 18-20 | 1.398 - 1.430 in | 35,51 - 36,32 mm | 1 mm | 1 | HEX-5/8 | Tool and partsGo for quote |
| PTTC-508-3"-8 | 2 in | 50,8 mm | 8 | 1.670 - 1.670 in | 42,42 - 42,42 mm | 1 mm | 1 | SQ-3/4 | Tool and partsGo for quote |
| PTTC-508-3"-9 | 2 in | 50,8 mm | 9 | 1.704 - 1.704 in | 43,28 - 43,28 mm | 1 mm | 1 | SQ-3/4 | Tool and partsGo for quote |
| PTTC-508-3"-10 | 2 in | 50,8 mm | 10 | 1.732 - 1.732 in | 44,00 - 44,00 mm | 1 mm | 1 | SQ-3/4 | Tool and partsGo for quote |
| PTTC-508-3"-11 | 2 in | 50,8 mm | 11 | 1.760 - 1.760 in | 44,70 - 44,70 mm | 1 mm | 1 | SQ-3/4 | Tool and partsGo for quote |
| PTTC-508-3"-12 | 2 in | 50,8 mm | 12 | 1.782 - 1.782 in | 45,26 - 45,26 mm | 1 mm | 1 | SQ-3/4 | Tool and partsGo for quote |
| PTTC-508-3"-13 | 2 in | 50,8 mm | 13 | 1.811 - 1.811 in | 46,00 - 46,00 mm | 1 mm | 1 | SQ-3/4 | Tool and partsGo for quote |
| PTTC-508-3"-14 | 2 in | 50,8 mm | 14 | 1.835 - 1.835 in | 46,60 - 46,60 mm | 1 mm | 1 | SQ-3/4 | Tool and partsGo for quote |
| PTTC-508-3"-15 | 2 in | 50,8 mm | 15 | 1.856 - 1.856 in | 47,14 - 47,14 mm | 1 mm | 1 | SQ-3/4 | Tool and partsGo for quote |
| PTTC-508-3"-16 | 2 in | 50,8 mm | 16-20 | 1.870 - 1.927 in | 47,50 - 48,94 mm | 1 mm | 1 | SQ-3/4 | Tool and partsGo for quote |
| PTTC-635-3"-8 | 2-1/2 in | 63,5 mm | 8 | 2.170 - 2.170 in | 55,12 - 55,12 mm | 1 mm | 1 | SQ-3/4 | Tool and partsGo for quote |
| PTTC-635-3"-9 | 2-1/2 in | 63,5 mm | 9 | 2.204 - 2.204 in | 55,98 - 55,98 mm | 1 mm | 1 | SQ-3/4 | Tool and partsGo for quote |
| PTTC-635-3"-10 | 2-1/2 in | 63,5 mm | 10 | 2.232 - 2.232 in | 56,70 - 56,70 mm | 1 mm | 1 | SQ-3/4 | Tool and partsGo for quote |
| PTTC-635-3"-11 | 2-1/2 in | 63,5 mm | 11 | 2.260 - 2.260 in | 57,40 - 57,40 mm | 1 mm | 1 | SQ-3/4 | Tool and partsGo for quote |
| PTTC-635-3"-12 | 2-1/2 in | 63,5 mm | 12 | 2.282 - 2.282 in | 57,96 - 57,96 mm | 1 mm | 1 | SQ-3/4 | Tool and partsGo for quote |
