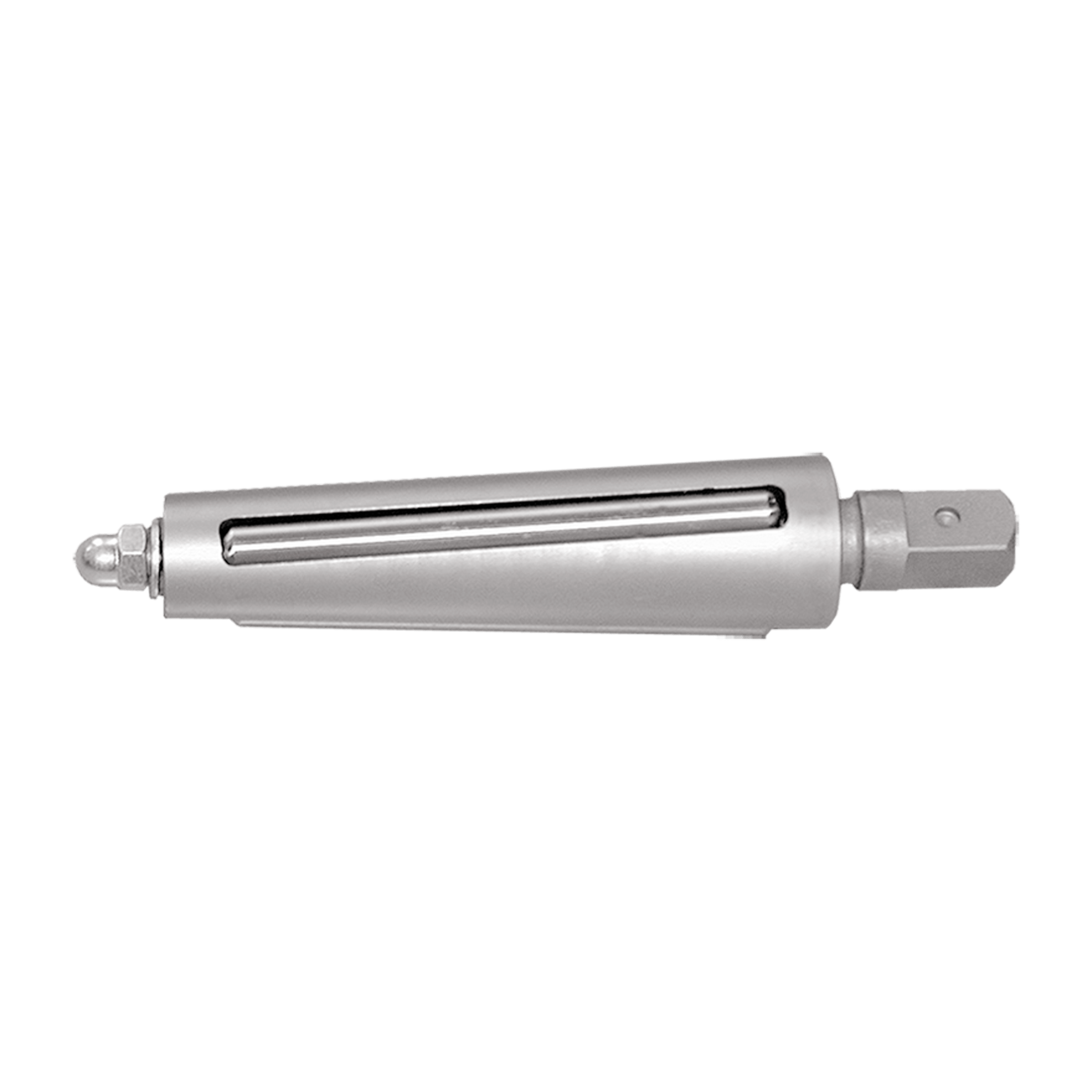

CBTE Nonparallel Colins Tube Expanders
Nonparallel self feeding boiler tube expanders. Suitable for repair work that have thin tube sheet or touch up a leaky joints.
CBTE Series (31 tools)
| TOOL NO. | Tube OD | Tube Gauge [BWG] | Tube ID | Expansion range | Mandrel square | Add to quote | |||
|---|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | Imperial | Metric | Imperial | Metric | ||||
| CBTE-10 | 1/2 in | 12,70 mm | 16-17 | 0.370 - 0.384 in | 9,40 - 9,76 mm | 0.352 - 0.435 in | 8,94 - 11,05 mm | 3/8" | Tool and partsGo for quote |
| CBTE-11 | 1/2 in | 12,70 mm | 18-19 | 0.402 - 0.416 in | 10,22 - 10,56 mm | 0.382 - 0.465 in | 9,70 - 11,81 mm | 3/8" | Tool and partsGo for quote |
| CBTE-13 | 46239 in | 15,88 mm | 14 | 0.459 - 0.459 in | 11,65 - 11,65 mm | 0.438 - 0.521 in | 11,12 - 13,23 mm | 3/8" | Tool and partsGo for quote |
| CBTE-15 | 46239 in | 15,88 mm | 15-17 | 0.481 - 0.509 in | 12,21 - 12,93 mm | 0.462 - 0.566 in | 11,73 - 14,37 mm | 3/8" | Tool and partsGo for quote |
| 46115 in | 19,05 mm | 10 | 0.482 - 0.482 in | 12,25 - 12,25 mm | 0.462 - 0.566 in | 11,73 - 14,37 mm | 3/8" | ||
| CBTE-17 | 46239 in | 15,88 mm | 18-19 | 0.527 - 0.541 in | 13,39 - 13,73 mm | 0.490 - 0.620 in | 12,44 - 15,74 mm | 3/8" | Tool and partsGo for quote |
| 46115 in | 19,05 mm | 11-12 | 0.510 - 0.532 in | 12,95 - 13,51 mm | 0.490 - 0.620 in | 12,44 - 15,74 mm | 3/8" | ||
| CBTE-19 | 46115 in | 19,05 mm | 13-15 | 0.560 - 0.606 in | 14,23 - 15,39 mm | 0.538 - 0.688 in | 13,66 - 17,47 mm | 3/8" | Tool and partsGo for quote |
| CBTE-21 | 46115 in | 19,05 mm | 16-17 | 0.620 - 0.634 in | 15,75 - 16,11 mm | 0.596 - 0.752 in | 15,13 - 19,10 mm | 3/8" | Tool and partsGo for quote |
| 46241 in | 22,22 mm | 11 | 0.635 - 0.635 in | 16,12 - 16,12 mm | 0.596 - 0.752 in | 15,13 - 19,10 mm | 3/8" | ||
| CBTE-22 | 46115 in | 19,05 mm | 18-19 | 0.652 - 0.916 in | 16,57 - 23,26 mm | 0.620 - 0.776 in | 15,75 - 19,71 mm | 3/8" | Tool and partsGo for quote |
| 46241 in | 22,22 mm | 12 | 0.657 - 0.657 in | 16,68 - 16,68 mm | 0.620 - 0.776 in | 15,75 - 19,71 mm | 3/8" | ||
| CBTE-23 | 46241 in | 22,22 mm | 13-14 | 0.685 - 0.709 in | 17,40 - 18,00 mm | 0.650 - 0.806 in | 16,51 - 20,47 mm | 3/8" | Tool and partsGo for quote |
| 1 in | 25,40 mm | 9 | 0.704 - 0.704 in | 17,88 - 17,88 mm | 0.650 - 0.806 in | 16,51 - 20,47 mm | 3/8" | ||
| CBTE-24 | 46241 in | 22,22 mm | 15-17 | 0.731 - 0.759 in | 18,56 - 19,28 mm | 0.710 - 0.866 in | 18,03 - 21,99 mm | 1/2" | Tool and partsGo for quote |
| 1 in | 25,40 mm | 10-11 | 0.732 - 0.760 in | 18,60 - 19,30 mm | 0.710 - 0.866 in | 18,03 - 21,99 mm | 1/2" | ||
| CBTE-25 | 1 in | 25,40 mm | 12-13 | 0.782 - 0.810 in | 19,86 - 20,58 mm | 0.760 - 0.916 in | 19,30 - 23,26 mm | 1/2" | Tool and partsGo for quote |
| CBTE-26 | 1 in | 25,40 mm | 14-16 | 0.834 - 0.870 in | 21,18 - 22,10 mm | 0.812 - 0.968 in | 20,62 - 24,58 mm | 1/2" | Tool and partsGo for quote |
| CBTE-27 | 1 in | 25,40 mm | 17-18 | 0.884 - 0.902 in | 22,46 - 22,92 mm | 0.861 - 1.018 in | 21,88 - 25,85 mm | 1/2" | Tool and partsGo for quote |
| 39448 in | 28,58 mm | 12 | 0.908 - 0.908 in | 23,06 - 23,06 mm | 0.862 - 1.018 in | 21,89 - 25,85 mm | 1/2" | ||
| CBTE-29 | 39448 in | 28,58 mm | 13-17 | 0.937 - 1.008 in | 23,80 - 25,60 mm | 0.890 - 1.173 in | 22,60 - 29,80 mm | 1/2" | Tool and partsGo for quote |
| 37987 in | 31,75 mm | 9-12 | 0.949 - 1.028 in | 24,10 - 26,10 mm | 0.890 - 1.173 in | 22,60 - 29,80 mm | 1/2" | ||
| CBTE-30 | 37987 in | 31,75 mm | 13-16 | 1.058 - 1.118 in | 26,88 - 28,40 mm | 1.016 - 1.291 in | 25,80 - 32,80 mm | 1/2" | Tool and partsGo for quote |
| CBTE-31 | 39508 in | 34,93 mm | 13 | 1.185 - 1.185 in | 30,10 - 30,10 mm | 1.150 - 1.398 in | 29,20 - 35,50 mm | 1/2" | Tool and partsGo for quote |
| 37257 in | 38,10 mm | 11-12 | 1.260 - 1.280 in | 32,00 - 32,50 mm | 1.150 - 1.398 in | 29,20 - 35,50 mm | 1/2" | ||
| CBTE-32 | 37257 in | 38,10 mm | 13-16 | 1.310 - 1.370 in | 33,28 - 34,80 mm | 1.274 - 1.524 in | 32,35 - 38,70 mm | 3/4" | Tool and partsGo for quote |
| CBTE-33 | 39569 in | 41,28 mm | 11-13 | 1.385 - 1.435 in | 35,17 - 36,45 mm | 1.336 - 1.586 in | 33,93 - 40,28 mm | 3/4" | Tool and partsGo for quote |
| CBTE-36 | 38047 in | 44,45 mm | 11-13 | 1.510 - 1.560 in | 38,35 - 39,63 mm | 1.462 - 1.712 in | 37,13 - 43,48 mm | 3/4" | Tool and partsGo for quote |
| CBTE-40 | 39630 in | 47,63 mm | 11-13 | 1.635 - 1.685 in | 41,52 - 42,80 mm | 1.600 - 1.850 in | 40,64 - 46,99 mm | 3/4" | Tool and partsGo for quote |
| CBTE-44 | 2 in | 50,80 mm | 11-13 | 1.760 - 1.810 in | 44,70 - 45,98 mm | 1.724 - 1.974 in | 43,78 - 50,14 mm | 3/4" | Tool and partsGo for quote |
| CBTE-52 | 39449 in | 53,98 mm | 11-13 | 1.885 - 1.935 in | 47,87 - 49,15 mm | 1.850 - 2.100 in | 46,99 - 53,34 mm | 3/4" | Tool and partsGo for quote |
| CBTE-56 | 37988 in | 57,15 mm | 11-13 | 2.008 - 2.058 in | 51,00 - 52,28 mm | 1.980 - 2.230 in | 50,28 - 56,64 mm | 1" | Tool and partsGo for quote |
| CBTE-65 | 37258 in | 63,50 mm | 11-13 | 2.260 - 2.310 in | 57,40 - 58,68 mm | 2.230 - 2.480 in | 56,64 - 63,00 mm | 1" | Tool and partsGo for quote |
| CBTE-66 | 38048 in | 69,85 mm | 11-13 | 2.510 - 2.560 in | 63,75 - 65,03 mm | 2.480 - 2.730 in | 63,00 - 69,35 mm | 1" | Tool and partsGo for quote |
| CBTE-68 | 3 in | 76,20 mm | 10-13 | 2.732 - 2.810 in | 69,40 - 71,38 mm | 2.690 - 3.023 in | 68,33 - 76,78 mm | 1" | Tool and partsGo for quote |
| CBTE-70 | 37989 in | 82,55 mm | 10-13 | 2.984 - 3.062 in | 75,80 - 77,78 mm | 2.940 - 3.273 in | 74,67 - 83,13 mm | 1" | Tool and partsGo for quote |
| CBTE-80 | 37259 in | 88,90 mm | 10-13 | 3.232 - 3.310 in | 82,10 - 84,08 mm | 3.190 - 3.523 in | 81,02 - 89,48 mm | 1" | Tool and partsGo for quote |
| CBTE-84 | 38049 in | 95,25 mm | 9-13 | 3.454 - 3.560 in | 87,73 - 90,43 mm | 3.412 - 3.745 in | 86,66 - 95,12 mm | 1" | Tool and partsGo for quote |
| CBTE-90 | 4 in | 101,60 mm | 9-13 | 3.704 - 3.810 in | 94,08 - 96,78 mm | 3.661 - 3.995 in | 93,00 - 101,47 mm | 1" | Tool and partsGo for quote |
| CBTE-100 | 4-1/2 in | 114,30 mm | 9-13 | 4.204 - 4.310 in | 106,78 - 109,48 mm | 4.161 - 4.449 in | 105,70 - 113,00 mm | 1" | Tool and partsGo for quote |
