UCBR

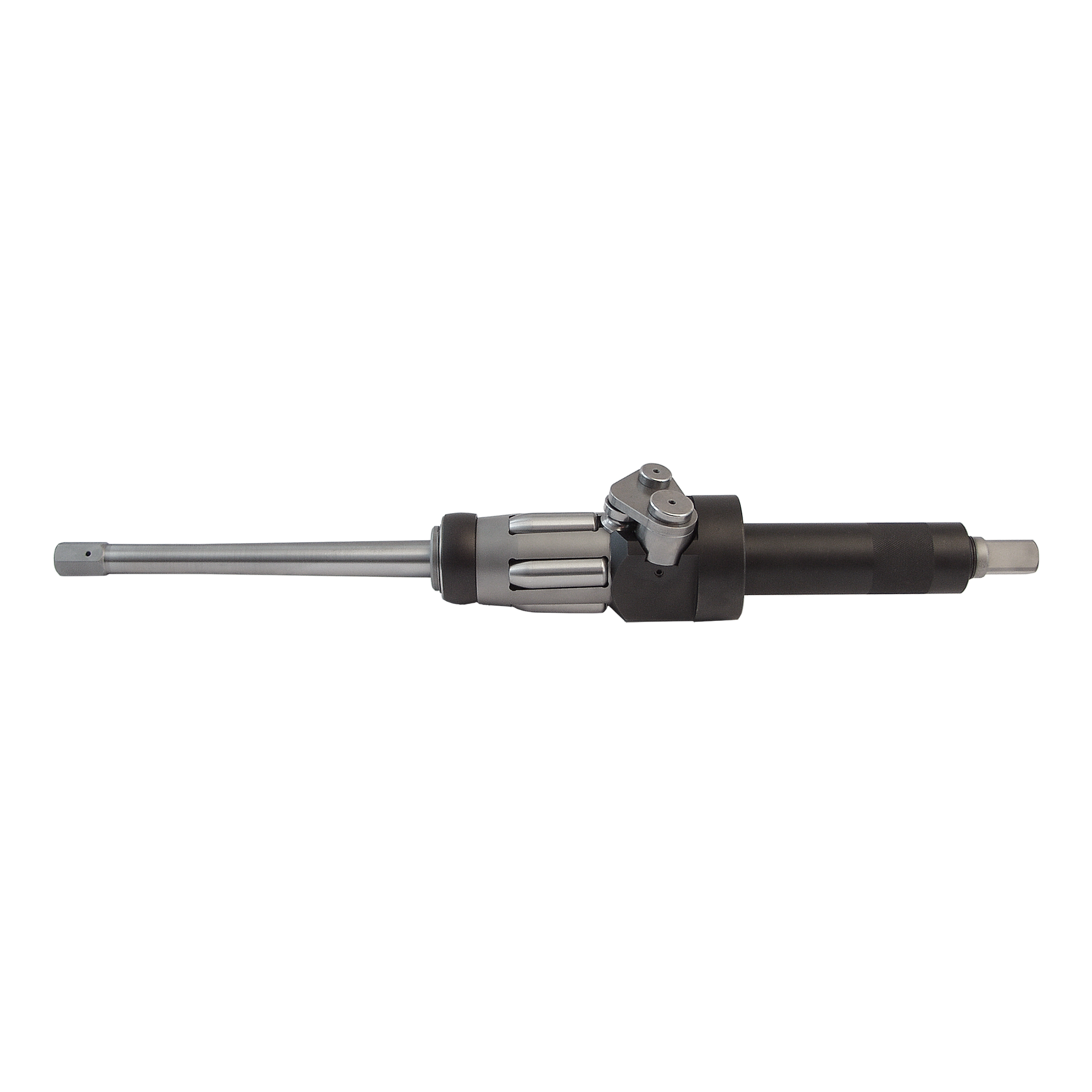

UCBR Universal Combination Beading Rolling Tools
Self feeding, straight roll tool, capable of simultaneously expanding and forming a uniform bead tight upon the tube sheet.
UCBR Series (3 tools)
| TOOL NO. | Tube OD | Tube Gauge [BWG] | Expansion range | Mandrel square | Add to quote | ||
|---|---|---|---|---|---|---|---|
| Imperial | Metric | Imperial | Metric | ||||
| 41633-00 | 2 in | 50,8 mm | 10 | 1.701 - 1.906 in | 43,2 - 48,4 mm | 3/4" | Tool and partsGo for quote |
| 2 in | 50,8 mm | 11 | 1.701 - 1.906 in | 43,2 - 48,4 mm | 3/4" | ||
| 2 in | 50,8 mm | 12 | 1.701 - 1.906 in | 43,2 - 48,4 mm | 3/4" | ||
| 2 in | 50,8 mm | 13 | 1.701 - 1.906 in | 43,2 - 48,4 mm | 3/4" | ||
| 41634-00 | 37258 in | 63,5 mm | 10 | 2.201 - 2.465 in | 55,9 - 62,6 mm | 3/4" | Tool and partsGo for quote |
| 37258 in | 63,5 mm | 11 | 2.201 - 2.465 in | 55,9 - 62,6 mm | 3/4" | ||
| 37258 in | 63,5 mm | 12 | 2.201 - 2.465 in | 55,9 - 62,6 mm | 3/4" | ||
| 37258 in | 63,5 mm | 13 | 2.201 - 2.465 in | 55,9 - 62,6 mm | 3/4" | ||
| 41359-00 | 3 in | 76,2 mm | 10 | 2.701 - 2.980 in | 68,6 - 75,7 mm | 1" | Tool and partsGo for quote |
| 3 in | 76,2 mm | 11 | 2.701 - 2.980 in | 68,6 - 75,7 mm | 1" | ||
| 3 in | 76,2 mm | 12 | 2.701 - 2.980 in | 68,6 - 75,7 mm | 1" | ||
