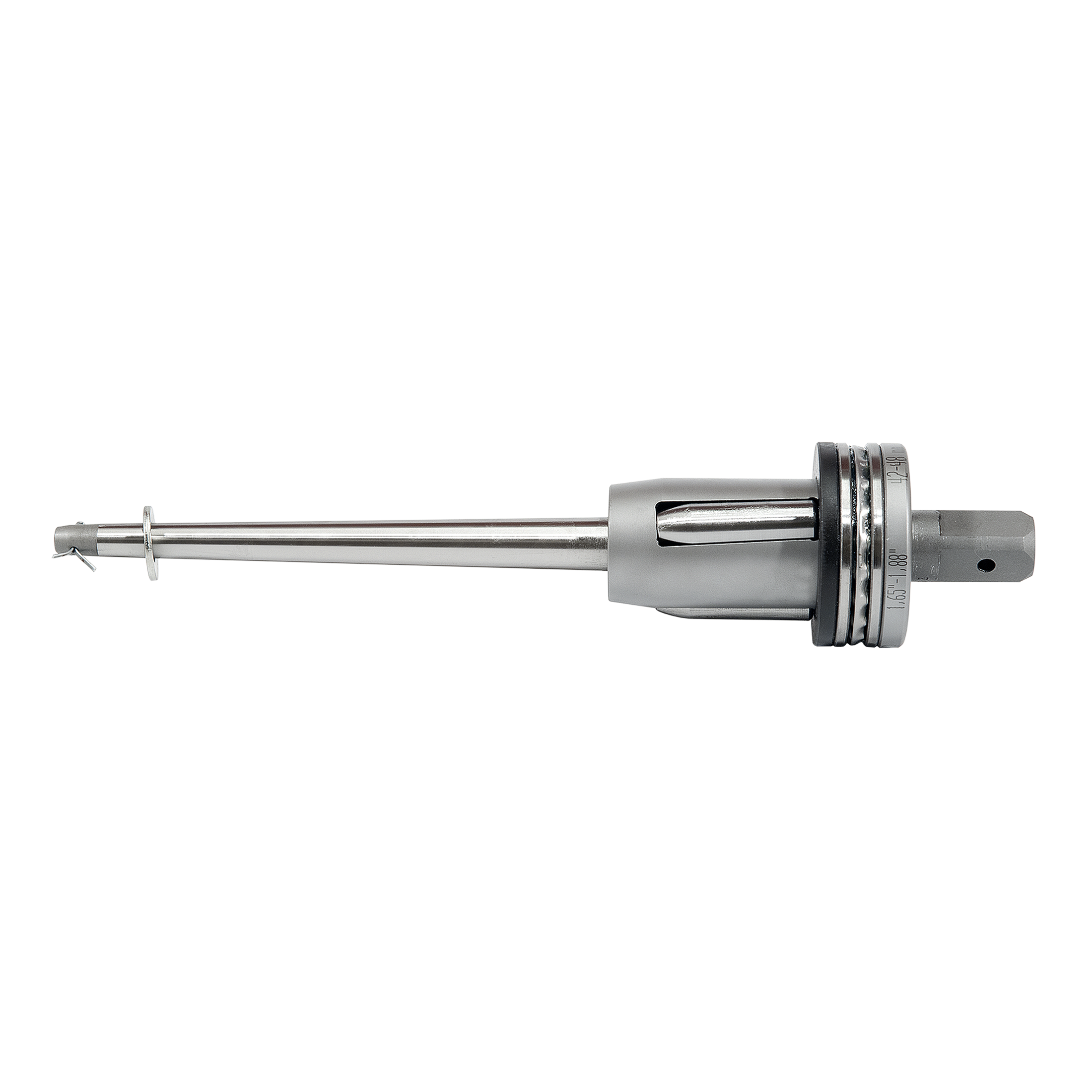

PZ Boiler Tube Expanders with Collar

Three expansion rolls, excellent for constructions of water tube boilers, fire tube boilers, economizers and air heaters.

PZ Series (66 tools)

TOOL NO.	Tube OD		Tube Gauge [BWG]	Expansion range		Roll lenght	Mandrel length	Short mandrel length	Mandrel square	Add to quote
TOOL NO.	Imperial	Metric	Tube Gauge [BWG]	Imperial	Metric	Roll lenght	Mandrel length	Short mandrel length	Mandrel square	Add to quote
PZ-1942	1” in	25,40 mm	11-12	0.748 - 0.866 in	19,0 - 22,0 mm	42 mm	196 mm	-	1/2	Tool and partsGo for quote
PZ-1950	1” in	25,40 mm	11-12	0.748 - 0.866 in	19,0 - 22,0 mm	50 mm	196 mm	-	1/2	Tool and partsGo for quote
PZ-2042	1” in	25,40 mm	13-16	0.787 - 0.906 in	20,0 - 23,0 mm	42 mm	196 mm	-	1/2	Tool and partsGo for quote
PZ-2050	1” in	25,40 mm	13-16	0.787 - 0.906 in	20,0 - 23,0 mm	50 mm	196 mm	-	1/2	Tool and partsGo for quote
PZ-2242	1-1/8” in	28,58 mm	12-14	0.866 - 0.984 in	22,0 - 25,0 mm	42 mm	196 mm	-	1/2	Tool and partsGo for quote
PZ-2250	1-1/8” in	28,58 mm	12-14	0.866 - 0.984 in	22,0 - 25,0 mm	50 mm	196 mm	-	1/2	Tool and partsGo for quote
PZ-2342	1-1/8” in	28,58 mm	14-16	0.906 - 1.024 in	23,0 - 26,0 mm	42 mm	196 mm	-	1/2	Tool and partsGo for quote
PZ-2350	1-1/8” in	28,58 mm	14-16	0.906 - 1.024 in	23,0 - 26,0 mm	50 mm	196 mm	-	1/2	Tool and partsGo for quote
PZ-2442	1-1/8” in	28,58 mm	15-17	0.945 - 1.063 in	24,0 - 27,0 mm	42 mm	196 mm	-	1/2	Tool and partsGo for quote
PZ-2450	1-1/8” in	28,58 mm	15-17	0.945 - 1.063 in	24,0 - 27,0 mm	50 mm	196 mm	-	1/2	Tool and partsGo for quote
PZ-2542	1-1/8” in	28,58 mm	16	0.984 - 1.102 in	25,0 - 28,0 mm	42 mm	196 mm	-	1/2	Tool and partsGo for quote
PZ-2550	1-1/8” in	28,58 mm	16	0.984 - 1.102 in	25,0 - 28,0 mm	50 mm	196 mm	-	1/2	Tool and partsGo for quote
PZ-2642	1-1/4” in	31,75 mm	12-14	1.024 - 1.142 in	26,0 - 29,0 mm	42 mm	196 mm	-	1/2	Tool and partsGo for quote
PZ-2650	1-1/4” in	31,75 mm	12-14	1.024 - 1.142 in	26,0 - 29,0 mm	50 mm	196 mm	-	1/2	Tool and partsGo for quote
PZ-2742	1-1/4” in	31,75 mm	12-17	1.063 - 1.181 in	27,0 - 30,0 mm	42 mm	196 mm	-	1/2	Tool and partsGo for quote
PZ-2750	1-1/4” in	31,75 mm	12-17	1.063 - 1.181 in	27,0 - 30,0 mm	50 mm	196 mm	-	1/2	Tool and partsGo for quote
PZ-2842	1-1/4” in	31,75 mm	16	1.102 - 1.260 in	28,0 - 32,0 mm	42 mm	260 mm	-	3/4	Tool and partsGo for quote
PZ-2850	1-1/4” in	31,75 mm	16	1.102 - 1.260 in	28,0 - 32,0 mm	50 mm	260 mm	-	3/4	Tool and partsGo for quote
PZ-2942	1-1/2” in	38,10 mm	7-11	1.142 - 1.299 in	29,0 - 33,0 mm	42 mm	260 mm	-	3/4	Tool and partsGo for quote
PZ-2950	1-1/2” in	38,10 mm	7-11	1.142 - 1.299 in	29,0 - 33,0 mm	50 mm	260 mm	-	3/4	Tool and partsGo for quote
PZ-3042	1-1/2” in	38,10 mm	10-12	1.181 - 1.339 in	30,0 - 34,0 mm	42 mm	260 mm	-	3/4	Tool and partsGo for quote
PZ-3050	1-1/2” in	38,10 mm	10-12	1.181 - 1.339 in	30,0 - 34,0 mm	50 mm	260 mm	-	3/4	Tool and partsGo for quote
PZ-3242	1-1/2” in	38,10 mm	13-16	1.260 - 1.417 in	32,0 - 36,0 mm	42 mm	260 mm	-	3/4	Tool and partsGo for quote
PZ-3250	1-1/2” in	38,10 mm	13-16	1.260 - 1.417 in	32,0 - 36,0 mm	50 mm	260 mm	-	3/4	Tool and partsGo for quote
PZ-3342	1-1/2” in	38,10 mm	13-20	1.299 - 1.496 in	33,0 - 38,0 mm	42 mm	290 mm	181,00	3/4	Tool and partsGo for quote
PZ-3350	1-1/2” in	38,10 mm	13-20	1.299 - 1.496 in	33,0 - 38,0 mm	50 mm	290 mm	181,00	3/4	Tool and partsGo for quote
PZ-3542	1-3/4” in	44,45 mm	8-9	1.378 - 1.614 in	35,0 - 41,0 mm	42 mm	310 mm	188,00	3/4	Tool and partsGo for quote
PZ-3550	1-3/4” in	44,45 mm	8-9	1.378 - 1.614 in	35,0 - 41,0 mm	50 mm	310 mm	188,00	3/4	Tool and partsGo for quote
PZ-3742	1-3/4” in	44,45 mm	10-16	1.457 - 1.693 in	37,0 - 43,0 mm	42 mm	310 mm	188,00	3/4	Tool and partsGo for quote
PZ-3750	1-3/4” in	44,45 mm	10-16	1.457 - 1.693 in	37,0 - 43,0 mm	50 mm	310 mm	188,00	3/4	Tool and partsGo for quote
PZ-3942	1-3/4” in	44,45 mm	12-18	1.535 - 1.772 in	39,0 - 45,0 mm	42 mm	310 mm	188,00	3/4	Tool and partsGo for quote
PZ-3950	1-3/4” in	44,45 mm	12-18	1.535 - 1.772 in	39,0 - 45,0 mm	50 mm	310 mm	188,00	3/4	Tool and partsGo for quote
PZ-4050	2” in	50,80 mm	7-10	1.575 - 1.811 in	40,0 - 46,0 mm	50 mm	310 mm	205,00	3/4	Tool and partsGo for quote
PZ-4080	2” in	50,80 mm	7-10	1.575 - 1.811 in	40,0 - 46,0 mm	80 mm	310 mm	205,00	3/4	Tool and partsGo for quote
PZ-4250	2” in	50,80 mm	11-12	1.654 - 1.890 in	42,0 - 48,0 mm	50 mm	310 mm	205,00	3/4	Tool and partsGo for quote
PZ-4280	2” in	50,80 mm	11-12	1.654 - 1.890 in	42,0 - 48,0 mm	80 mm	310 mm	205,00	3/4	Tool and partsGo for quote
PZ-4450	2” in	50,80 mm	13-15	1.732 - 1.969 in	44,0 - 50,0 mm	50 mm	310 mm	205,00	3/4	Tool and partsGo for quote
PZ-4480	2” in	50,80 mm	13-15	1.732 - 1.969 in	44,0 - 50,0 mm	80 mm	310 mm	205,00	3/4	Tool and partsGo for quote
PZ-4750	2” in	50,80 mm	15-16	1.850 - 2.126 in	47,0 - 54,0 mm	50 mm	340 mm	218,00	3/4	Tool and partsGo for quote
PZ-4780	2” in	50,80 mm	15-16	1.850 - 2.126 in	47,0 - 54,0 mm	80 mm	340 mm	218,00	3/4	Tool and partsGo for quote
PZ-4950	2-1/4” in	57,15 mm	10-12	1.929 - 2.205 in	49,0 - 56,0 mm	50 mm	340 mm	218,00	3/4	Tool and partsGo for quote
PZ-4980	2-1/4” in	57,15 mm	10-12	1.929 - 2.205 in	49,0 - 56,0 mm	80 mm	340 mm	218,00	3/4	Tool and partsGo for quote
PZ-5250	2-1/4” in	57,15 mm	14-16	2.047 - 2.323 in	52,0 - 59,0 mm	50 mm	340 mm	218,00	3/4	Tool and partsGo for quote
PZ-5280	2-1/4” in	57,15 mm	14-16	2.047 - 2.323 in	52,0 - 59,0 mm	80 mm	340 mm	218,00	3/4	Tool and partsGo for quote
PZ-5450	2-1/2” in	63,50 mm	11-12	2.126 - 2.441 in	54,0 - 62,0 mm	50 mm	375 mm	230,00	3/4	Tool and partsGo for quote
PZ-5480	2-1/2” in	63,50 mm	11-12	2.126 - 2.441 in	54,0 - 62,0 mm	80 mm	375 mm	230,00	3/4	Tool and partsGo for quote
PZ-5750	2-1/2” in	63,50 mm	13-16	2.244 - 2.598 in	57,0 - 66,0 mm	50 mm	395 mm	235,00	3/4	Tool and partsGo for quote
PZ-5780	2-1/2” in	63,50 mm	13-16	2.244 - 2.598 in	57,0 - 66,0 mm	80 mm	395 mm	235,00	3/4	Tool and partsGo for quote
PZ-6050	2-3/4” in	69,85 mm	7-11	2.362 - 2.717 in	60,0 - 69,0 mm	50 mm	395 mm	235,00	3/4	Tool and partsGo for quote
PZ-6080	2-3/4” in	69,85 mm	7-11	2.362 - 2.717 in	60,0 - 69,0 mm	80 mm	395 mm	235,00	3/4	Tool and partsGo for quote
PZ-6550	3” in	76,20 mm	7-11	2.559 - 2.913 in	65,0 - 74,0 mm	50 mm	395 mm	235,00	3/4	Tool and partsGo for quote
PZ-6580	3” in	76,20 mm	7-11	2.559 - 2.913 in	65,0 - 74,0 mm	80 mm	395 mm	235,00	3/4	Tool and partsGo for quote
PZ-6850	3” in	76,20 mm	12-13	2.677 - 3.031 in	68,0 - 77,0 mm	50 mm	403 mm	255,00	1	Tool and partsGo for quote
PZ-6880	3” in	76,20 mm	12-13	2.677 - 3.031 in	68,0 - 77,0 mm	80 mm	403 mm	255,00	1	Tool and partsGo for quote
PZ-7250	3-1/4” in	82,55 mm	7-12	2.835 - 3.189 in	72,0 - 81,0 mm	50 mm	403 mm	255,00	1	Tool and partsGo for quote
PZ-7280	3-1/4” in	82,55 mm	7-12	2.835 - 3.189 in	72,0 - 81,0 mm	80 mm	403 mm	255,00	1	Tool and partsGo for quote
PZ-7750	3-1/4” in	82,55 mm	13-16	3.031 - 3.425 in	77,0 - 87,0 mm	50 mm	422 mm	255,00	1	Tool and partsGo for quote
PZ-7780	3-1/4” in	82,55 mm	13-16	3.031 - 3.425 in	77,0 - 87,0 mm	80 mm	422 mm	255,00	1	Tool and partsGo for quote
PZ-8250	3-1/2” in	88,90 mm	10-16	3.228 - 3.622 in	82,0 - 92,0 mm	50 mm	422 mm	255,00	1	Tool and partsGo for quote
PZ-8280	3-1/2” in	88,90 mm	10-16	3.228 - 3.622 in	82,0 - 92,0 mm	80 mm	422 mm	255,00	1	Tool and partsGo for quote
PZ-8650	3-3/4” in	95,25 mm	7-12	3.386 - 3.780 in	86,0 - 96,0 mm	50 mm	422 mm	255,00	1	Tool and partsGo for quote
PZ-8680	3-3/4” in	95,25 mm	7-12	3.386 - 3.780 in	86,0 - 96,0 mm	80 mm	422 mm	255,00	1	Tool and partsGo for quote
PZ-9050	4” in	101,60 mm	8-12	3.543 - 3.937 in	90,0 - 100,0 mm	50 mm	422 mm	275,00	1	Tool and partsGo for quote
PZ-9080	4” in	101,60 mm	8-12	3.543 - 3.937 in	90,0 - 100,0 mm	80 mm	422 mm	275,00	1	Tool and partsGo for quote
PZ-9650	4” in	101,60 mm	13-16	3.780 - 4.173 in	96,0 - 106,0 mm	50 mm	422 mm	275,00	1	Tool and partsGo for quote
PZ-9680	4” in	101,60 mm	13-16	3.780 - 4.173 in	96,0 - 106,0 mm	80 mm	422 mm	275,00	1	Tool and partsGo for quote
